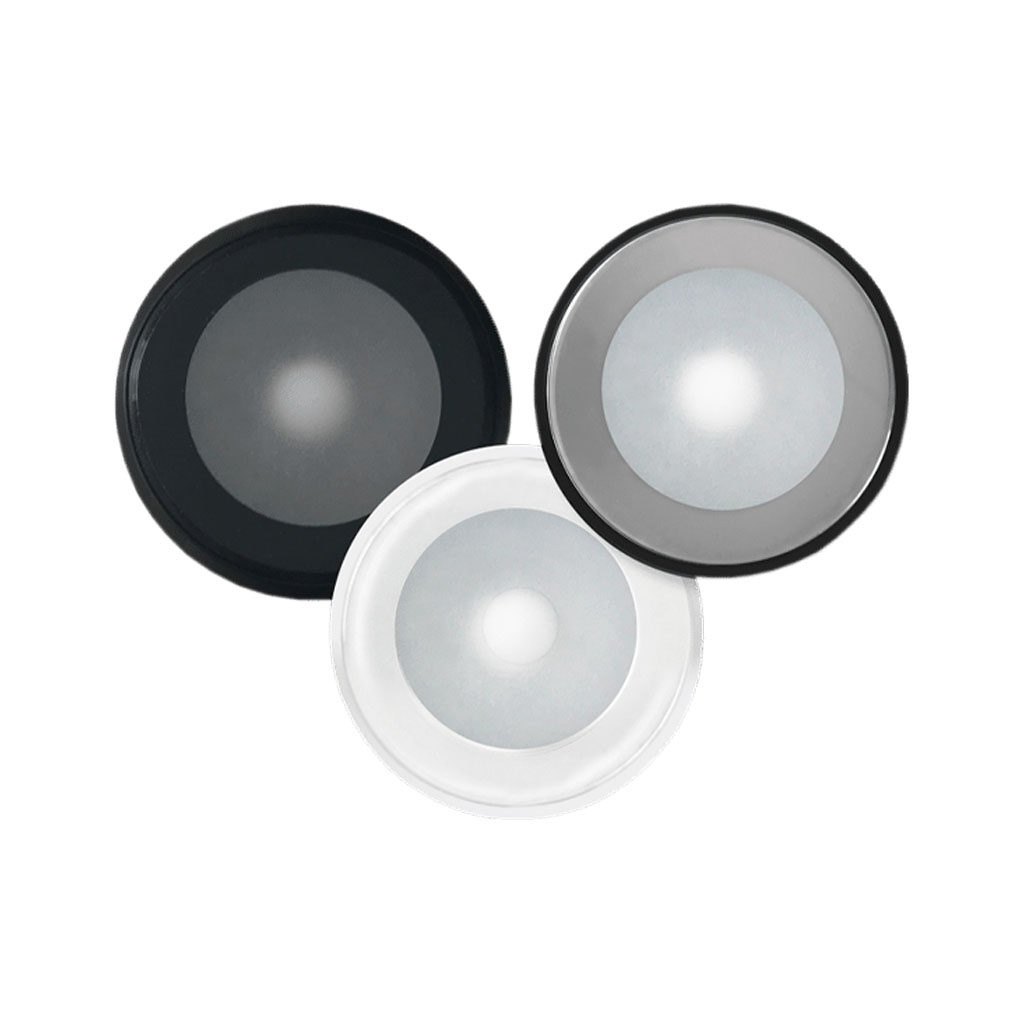

The Shadow-Caster® large marine LED down light SCM-DLX is perfect for lighting overhead areas of the interior and exterior of your boat or yacht.

At 3” overall diameter, its wide angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers and more. Easily control the brightness and color from a standard switch.

The SCM-DLX series is available in 3 light output choices: single color white; 3 color (white, blue and red) as well as a full color version. Choose from three beautiful color finishes – white, black and polished chrome.



  • Soft start technology ramps the brightness up gently over 2 seconds
  • Power toggle feature to set brightness and change color
  • True white LED for best color performance
  • 120 degree viewing angle
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • All-Glass reveal provides a modern look
  • White, black or polished chrome finish
  • 2-Year Warranty
  • 300 lumen output
  • 120° beam angle
  • 3 watt power draw
  • 10-30 volts input
  • 250mA at 12 volts, 125mA at 24 volts
  • 6200 Kelvin cool white color temperature
  • 3” (76mm) OD, 0.175” (4mm) mounting height
  • 2″ mounting hole
  • Durable glass lens
  • IP67 waterproof design
  • Color change version includes Shadow-NET® interface for control
