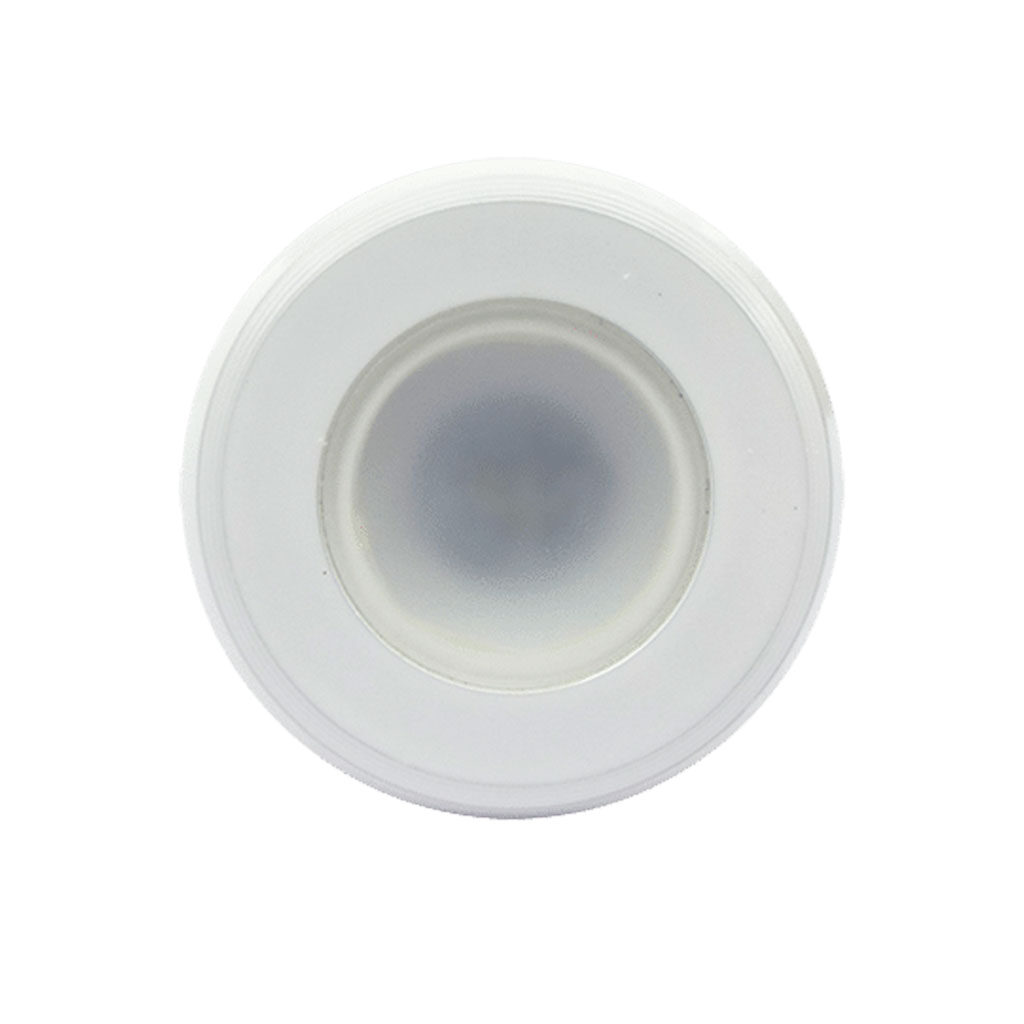

The Shadow-Caster® marine LED down light SCM-DL is perfect for lighting overhead areas of the interior and exterior of your boat or yacht.

At 2” overall diameter, its wide angle spread of light makes this perfect for lighting T-Tops, cabins, towers and more. Easily control the brightness and color from a standard switch.

The SCM-DL series is available in 4 lighting color output options: single color white; 2 color (blue and white); 3 color (white, blue and red) as well as a full color version. Choose from two color finishes – white or black.



  • Soft start technology ramps the brightness up gently over 2 seconds.
  • Power toggle feature to set brightness and change color
  • True white LED for best color performance
  • 120° viewing angle
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • 2-Year Warranty
  • 300 lumen output
  • 120° beam angle
  • 3 watt power draw
  • 10-30 volts input
  • 250mA at 12 volts, 125mA at 24 volts
  • 6200 Kelvin cool white color temperature
  • 2″ (51mm) OD, 0.175″ (4mm) mounting height
  • 1.25″ mounting hole
  • Durable glass lens
  • IP67 waterproof design
  • Color change version includes Shadow-NET® interface for controlling color Part# SCM-DL-CC-WH/SCM-DL-CC-BK
  • Color change version available in white powder coated or black anodized finish
