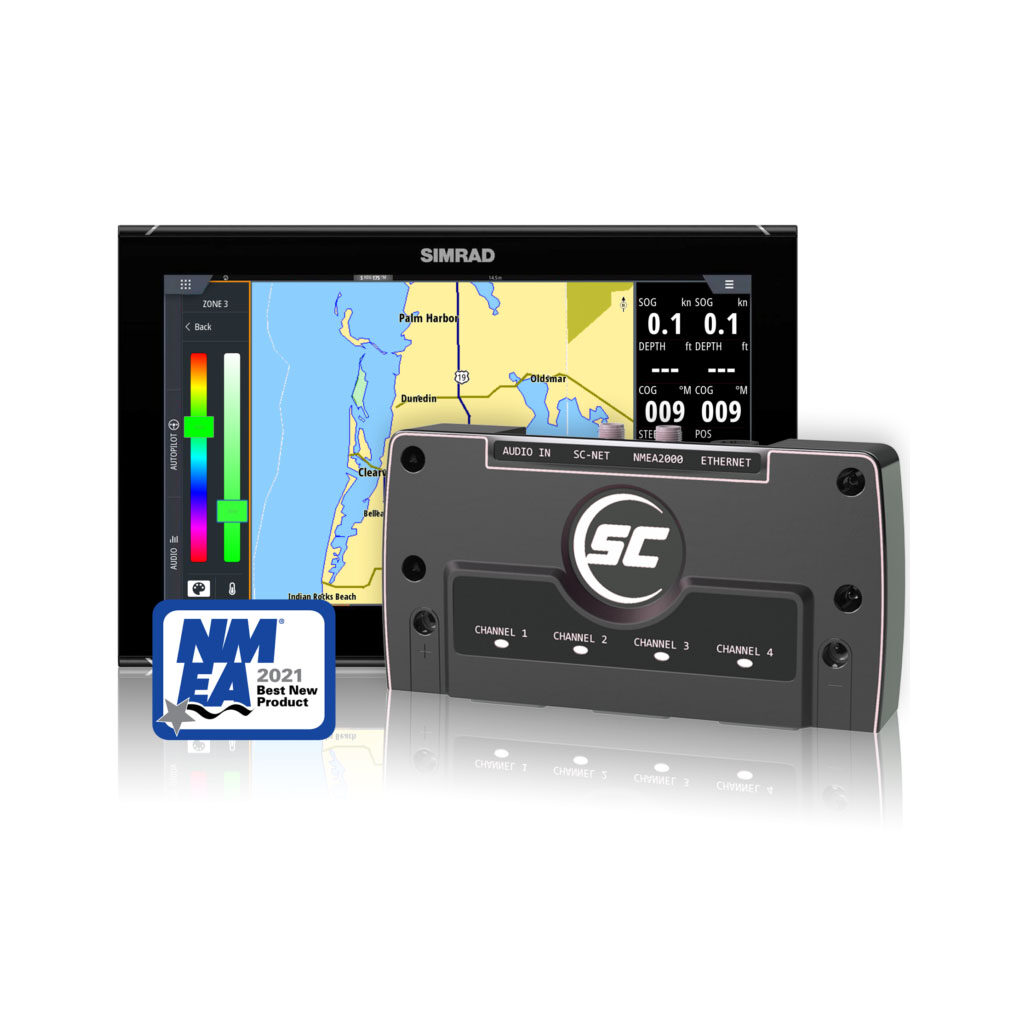

SHADOW-CASTER-NMEA2000 LIGHT COMMANDER SCM-LC

The Shadow-Caster^® Light Commander SCM-LC is an NMEA2000 lighting control based on the newly published NMEA2000 lighting control standards. Utilization of NMEA2000 lighting standards enable “next level” implementation of lighting control and marine system integration and system interoperability.

The expandable SC-LC multi-zone lighting controller supports up to 6 zones of lighting per module with native support for 4 zones of RGB or RGBW lights. The lighting controller supports programs including multiple color fade, music sync and color rotation. The Light Commander comes in a fully sealed IP67 housing, with backlit logo design.

Wishlist

Description

IP67 rated enclosure
Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
15 amps per zone, 60 amps max
10 to 30V input range
Direct 3.5mm female audio input or built in microphone for music synchronization
Optional Wi-Fi/Bluetooth connectivity to support Shadow-Caster Light Commander Mobile app
Music sync created by onboard DSP (Digital Signal Processing)
Shadow-Net® bus allows system expandability
Digital power protection set at 15amps/channel
Built in switch inputs for instant on lighting for each zone
Global control for all lighting
24-bit color support and gamma correction for universal color support
Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)
