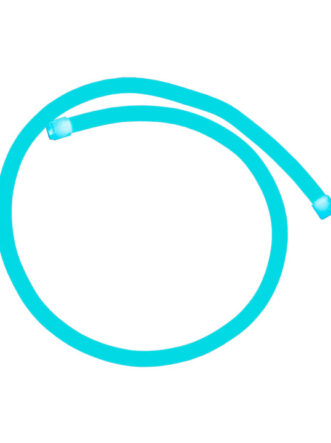

SHADOW-CASTER SCM-AL-MINI-NEON

The Shadow-Caster® marine mini neon light strip provides diffuse color changing RGB lighting to accent areas, hatches, steps, coves, shelves and compartments. For use with center console boats, fishing boats, pontoon boats, sports boats and yachts.

Slightly smaller than our standard neon marine light strip (SCM-AL-NEON), the SCM-AL-MINI-NEON has a smaller bend radius and a greater LED density (LEDs/meter).

The SCM-AL-MINI-NEON versions are recommended where the strip will be directly visible as they have an integrated light diffuser that creates a pleasant continuous lighting look.

Shadow-Caster® marine mini neon light strip comes in either 8 or 16 ft lengths and can be cut down to fit into a particular application. As there are no integrated control electronics, the strip can either be hardwired to be a certain color or connected to a Shadow-Caster® marine LED controller to fully control color and brightness.

Wishlist

Description

LENGTHS AVAILABLE / PART NUMBER
8′ (2.5m) Length
TECHNICAL INFORMATION
  • RGB color
  • 120° beam angle
  • 120 LEDs per meter
  • 25mm cut segments
  • 15W per meter
  • 1.2A per meter
  • 12V only

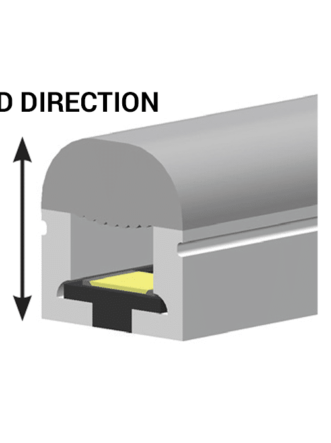

  • 1″ (25mm) bend radius
  • 0.4″ x 0.4″ (10mm x 11mm)
  • 20′ (6m) lead wire
  • IP67 waterproof design
  • Silicone jacket material
  • -30 – 60ºC operating temperature
  • Not compatible with SCM-AL-TRACK
